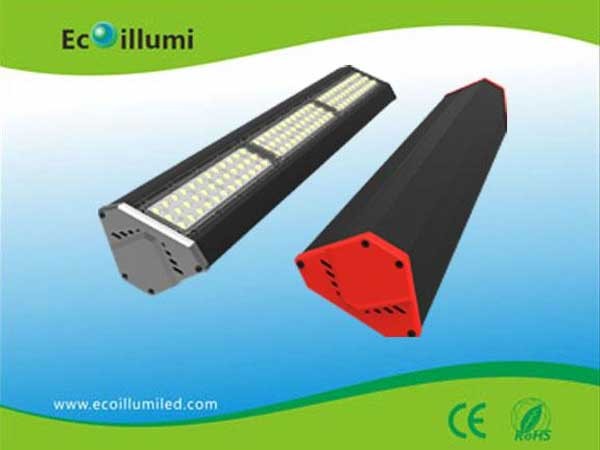

150W LED Linear High Bay Light

LED Linear Light 150W  - 500W Incandescent Bulb Replacement

Product info :

1.Power 150W

2. IP Rating IP65

3. Input Voltage AC100-240V

4. Product Dimension 780*135*90mm ,

5. LED Chip Bridgelux 3030 (Osram,Nichia also available )

6. Packing Dimension 828*490*380MM

7. LED Quantity 168pcs

8. N.W 3.9KG

9.  Lumen 11000LM

10. Life Time 50000Hrs

11. Beam Angle 120°/45°

12. Working Temperature -25℃ ~ +55℃

13. CRI 70/80

11. Store Temperature -45℃～+65℃(25℃ Best)

12. CCT 2700-6500K

13. Warranty 3/5 years

14. Driver CE/TUV or Meanwell

15. Certificate CE ,ROHS ,FCC

16. Power Factor >0.9

Features :

Fins design,advective holes and grooves in each fin,good for heat dissipation.

PHILIPS/OSRAM 2835 Chips, Available with high luminous flux

Constant current isolated driver, flicker-free

Wide input voltage range AC100-240V/100-277V

MeanWell&Inventronics driver,philips&Nichia LED as Lighting source

Professional light distribution technique,high light

Reflectivity reflectors,45°/90°/120°beam angle available;The lens pass rate is over 90%.

6063 brushed aluminum housing with good heat dissipation

Widely Application

Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other places of lighting required.

Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings！not only LED lights manufacturer , and also LED technology solution provider !

Company culture

Shenzhen Ecoillumi Tech Co., LTD  Ecoillumi is assembled by economic and illumination,our company hope more people use LED light , enviroment and energy saving  ,  its sleek and attractiveshape easily accentuates your decorative luminaires, making these lamps the best choice foratmospheric lighting with elegance.

Our Mission:

●Technology make the world more wonderful

Core Value:

● Honesty gratefulness Win-win cooperation

Corporate Spirit:

●Human Oriented, Grow together, pioneering enterprising, Enterprising Innovation

●Quality first, to perform and behave with integrity.

●Providing mature, Steady and high quality products to customers.

●We deliver what is promised.

Workshop image

Factory photo
