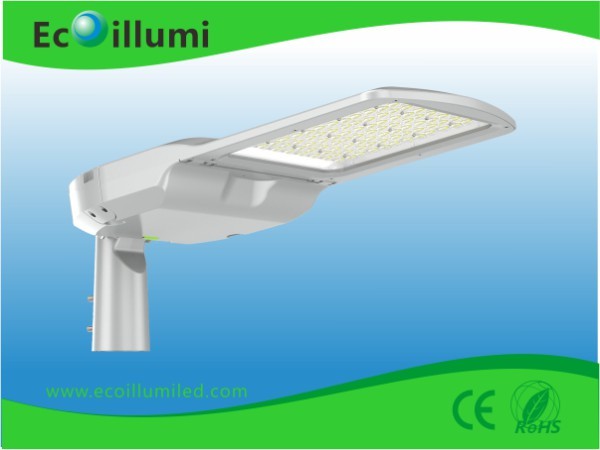

120w led street light

This led street light is protected by an IP66-rated aluminum alloy and poly carbonate lens enclosure that seals against dust and water jets. Included hardware for 60 mm round poles mounts the light vertically or horizontally, depending on your pole. 120w with a daylight sensor accessory for dusk-to-dawn lighting control


product information.jpg

Model No.                  EC-SL120B

Input Power                 100W   120W150W

Lumen Output         17,000 lm  20,400 lm  25,500 lm

Spigot Size                 Ø40mm/Ø50mm/Ø60mm

Luminous Efficacy            170 lm/w (150 lm/w optional)

Power Factor                 PF>0.90

Input Voltage                 AC100-277V/AC220-240V, 50Hz/60Hz

CCT                                 3000K/4000K/4500K/5000K/5700K/6500K

CRI                                 Ra≥70 (Ra≥80 optional)

LED Chip                         LUMILEDS

Housing Color                 Gray

IP Rating                         IP66

Certificate & ReportCE, RoHS

Material                        Aluminum, Glass, PC

Operating Temperature-30°C to +50°C

Operating Humidity10% to 90% RH

Lifespan                        100,000 hours

Product Feature :

Build-in Spirit Level : Ease of installation.

System ready option with SR and 7Pin NEMA socket options.

Airflow vent to extend life and eliminate moisture inside.

Easily to remove the lamp body for a fast maintenance on site.

Meanwell / Philips / Inventories / Sosen LED Driver as optional.

Up to 170lm/w by Using Lumileds 5050 HE Level LEDs.(System Efficacy).


Site, area, road and other lighting applications; Ideal for large retailers, commercial to medical properties, and big box retailers. And suitable for roadways.

company information.jpg

Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings!not only LED lights manufacturer , and also LED technology solution provider !


Company culture

Shenzhen Ecoillumi Tech Co., LTD  Ecoillumi is assembled by economic and illumination,our company hope more people use LED light , enviroment and energy saving  ,  its sleek and attractiveshape easily accentuates your decorative luminaires, making these lamps the best choice foratmospheric lighting with elegance.

Our Mission:

●Technology make the world more wonderful

Core Value:

● Honesty gratefulness Win-win cooperation

Corporate Spirit:

●Human Oriented, Grow together, pioneering enterprising, Enterprising Innovation

●Quality first, to perform and behave with integrity.

●Providing mature, Steady and high quality products to customers.

●We deliver what is promised.

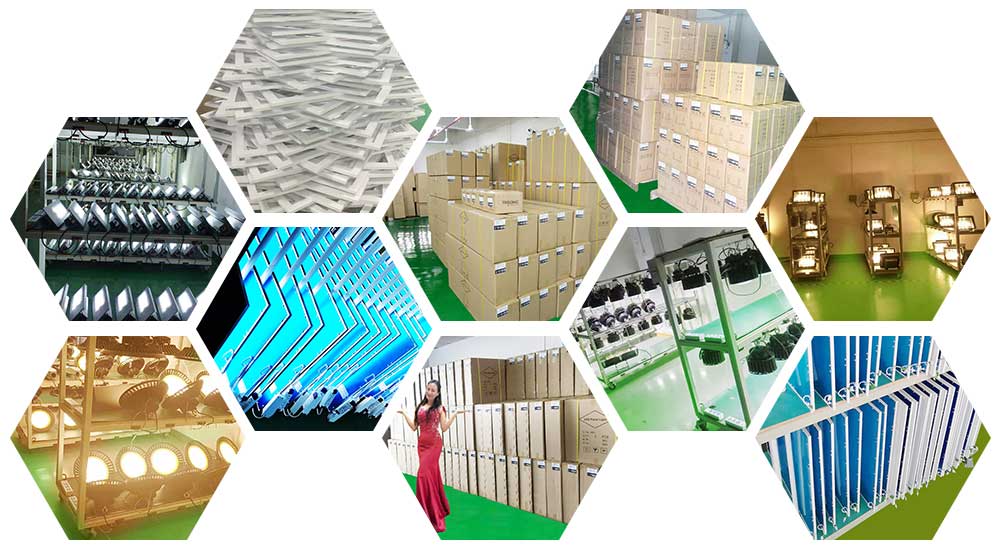

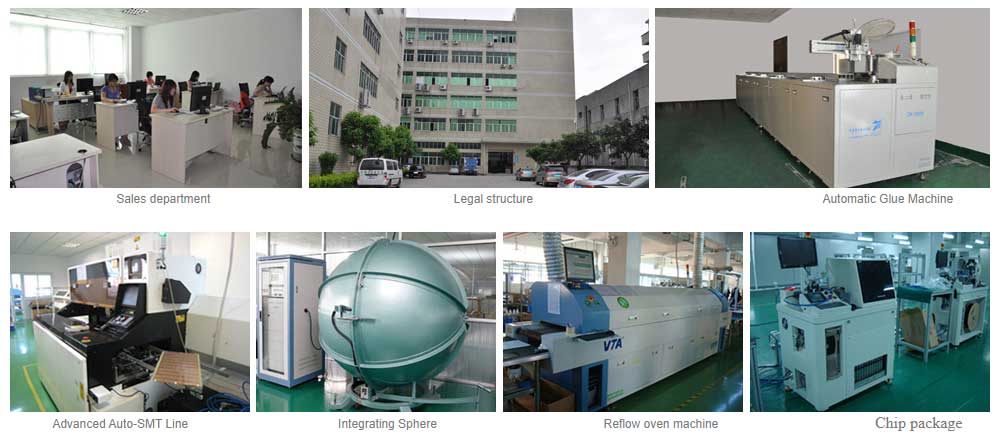

Factory information.jpg

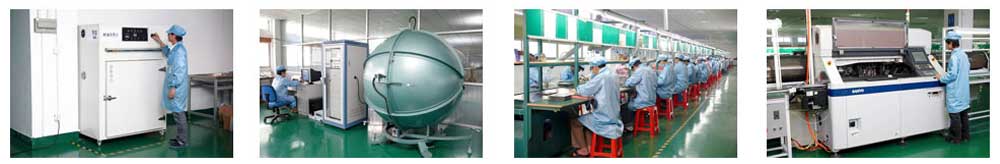

Workshop image

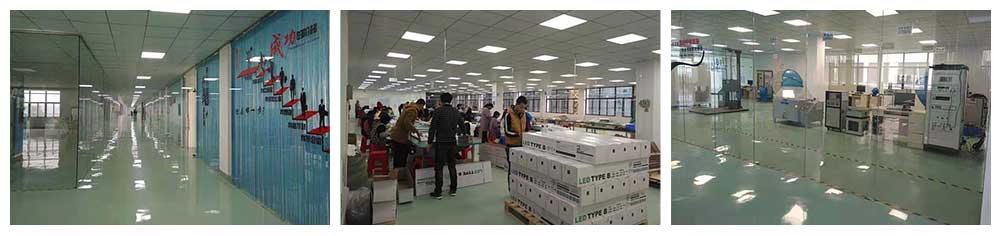

Factory photo
