Round led panel 300mm

Light Source: SMD LEDs; Voltage: AC85-265V; Wattage: 24W; LED Qty: 120pcs; Size: D300x13mm; Material: Aluminum + Glass; Lumens: 2300-2400Lm;Dimmable: On request

EMAIL

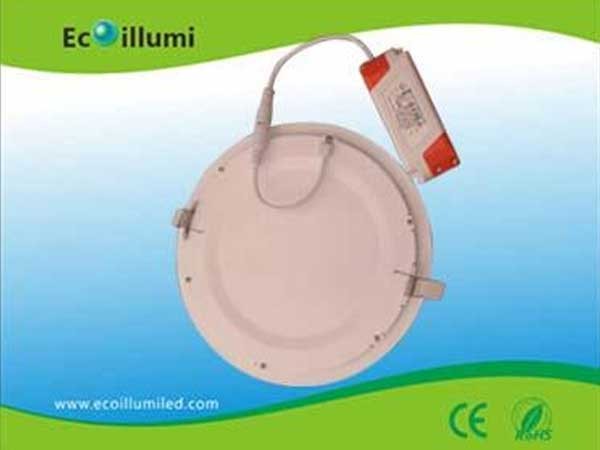

LED Panel Lights Round Shape 24W

Product Information:

 1. Model:EC-PA30-24W

 2. Frequency: 50-60Hz

 3. Input Volltage: 85-265VAC

 4. Power Consumption: 24W

 5. Working Temp: -20°C - 45°C

 6. LED QTY: 120pcs

 7. LED Type: High Efficient LEDs

 8. Lumens: 2300Lm

 9. Color: Cold white/Pure white/Warm white

10.CRI: 80

11.Beam Angle: 120

12.Material: Aluminum + PMMA (Acrylic) + PC diffuser

13.Dimension: D180*H13mm

14.Dimmable: Available on request

15.Approval: CE & Rohs

16.Life Span: >40,000 H

17.Warranty: 3 years

18.OEM/ODM Services: Available

19.Samples: Available on request

Product Features:

1. Energy saved up to 50%. High intensity .

2. 5-years life span.

3. Special different view angles, mixing lighting design.

4. Instant start, no flickering, no humming.

5. New inner high efficiency (95%) With heat protection.

6. System, the constant current driver can work under unstable voltage.

Applications:

Hotel,supermarket ,factory,school ,office,residential etc places where energy saving and high color rendering

index lighting are needed.


Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings!not only LED lights manufacturer , and also LED technology solution provider !


Company culture

Shenzhen Ecoillumi Tech Co., LTD  Ecoillumi is assembled by economic and illumination,our company hope more people use LED light , enviroment and energy saving  ,  its sleek and attractiveshape easily accentuates your decorative luminaires, making these lamps the best choice foratmospheric lighting with elegance.

Our Mission:

●Technology make the world more wonderful

Core Value:

● Honesty gratefulness Win-win cooperation

Corporate Spirit:

●Human Oriented, Grow together, pioneering enterprising, Enterprising Innovation

●Quality first, to perform and behave with integrity.

●Providing mature, Steady and high quality products to customers.

●We deliver what is promised.
