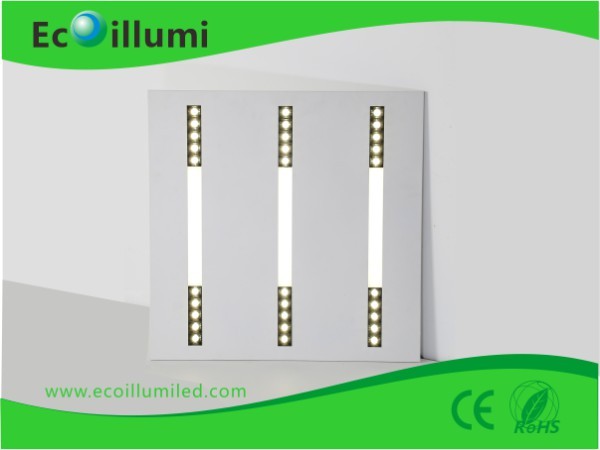

Grille LED panel light 36W

This grille panel light is made of a thickened, high-quality aluminum, with fine workmanship, fast heat dissipation and high corrosion resistance. The lamp body is only 25mm thin. Workmanship is excellent.

EMAIL

product information.jpg

Model No.EC-PL-36W

Power        36W

Lumen Output3600lm

Luminous Efficiency100lm/w

Color Temperature(CCT)2700-6500K

Color Rendering Index(CRI)Ra>80(Ra>90 on request)

Beam Angle         36°/120°/36+120°

Input Voltage  220-240/100-240VAC

Frequency        50/60Hz

Power Factor        >0.95

Start Time        ≤0.1s

Driver Efficiency>60%

Total Harmonic Distortion<10%

Dimming0-10V/PWM/DALI/Phase-cut on request

MaterialIron+Polycarbonate

Degree of ProtectionIP42 grille led panel light

Dimensions   L595*W595*H25mm

Appearance    White

Installation    Recessed / Surface Mounted / Suspended

Working Tem. & Humidity-30℃~+40℃,10%~90%R.H.

Storage Temp. & Humidity-40℃~+70℃,0%~95%R.H.

Certificate      CE, RoHS

Light Decay RateLess than 3% in 6,000Hours

Lifespan            ≥50,000Hrs

Warranty   5 years grille led panel light


Features of LED Panel Light:

1.Recessed LED Panel,no need any accessories

2.LED: Taiwan Epistar LED, light efficiency of LED panel reach to 100lm/w

3.Side emitting, super light and thickness, less than 11mm

4.Excellent PMMA optical light guide panel used for uniform lighting effect

5.Beam angle:>120°, Ra>80, IP42 CLASS‖

6.Certificate: CE, RoHS,Driver with UL approval

Applications:

Hotel,supermarket ,factory,school ,office,residential etc places where energy saving and high color rendering index lighting are needed.

company information.jpg

Shenzhen Ecoillumi Tech Co.,Limited is a hi-tech enterprise which focuse on the development, production, sales and service of LED indoor &outdoor lighting, founded in 2009,  is the earliest LED Light development and production enterprise in China.

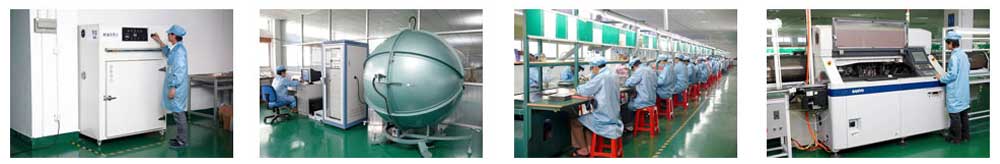

We have the main production equipments and materials from Taiwan, Japan, Korea, United States, have automatic SMT machine, automatic wave welding machine, ten temperature zones reflow soldering machine , high and low temperature experiment box , current shock laboratory, high voltage testing machine, large integrating sphere and such sorts of production and R&D equipments , We have a pool of experienced and professional R&D ,PC and QC teams on electronic and lighting fixture design aspects .  Main products including:  LED strip , LED tubes, LED Corn Light, LED high bay Light, LED Panel, LED flood light ,LED Street light and high power LED lighting fixture and so on,  the product has achieved CE, ROHS ,TUV , FCC and UL certificates.

Ecoillumi  insists on the" products, service----- professional, concentrated "business philosophy, devoting to the LED illumination industrial & commerical market ,  working hard on "professional supplier of LED lighting in the world " Young Ecoillumi has been advocated" learning, innovation, surefooted, diligence and thrift "enterprise culture, pursue technological innovation continuously, research and develop the products with the world's leading level and the core competitiveness, contribute for the environmental protection and energy saving, creating Economic illumination chapter in the age of lightings!not only LED lights manufacturer , and also LED technology solution provider !


Company culture

Shenzhen Ecoillumi Tech Co., LTD  Ecoillumi is assembled by economic and illumination,our company hope more people use LED light , enviroment and energy saving  ,  its sleek and attractiveshape easily accentuates your decorative luminaires, making these lamps the best choice foratmospheric lighting with elegance.

Our Mission:

●Technology make the world more wonderful

Core Value:

● Honesty gratefulness Win-win cooperation

Corporate Spirit:

●Human Oriented, Grow together, pioneering enterprising, Enterprising Innovation

●Quality first, to perform and behave with integrity.

●Providing mature, Steady and high quality products to customers.

●We deliver what is promised.

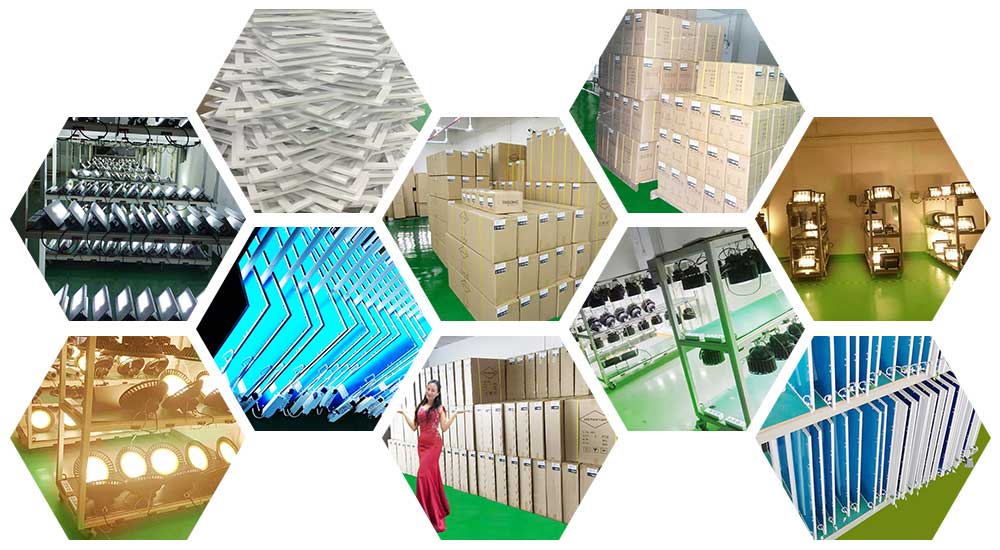

Factory information.jpg

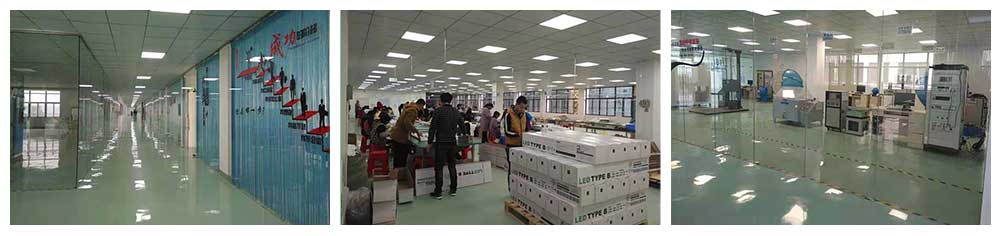

Workshop image

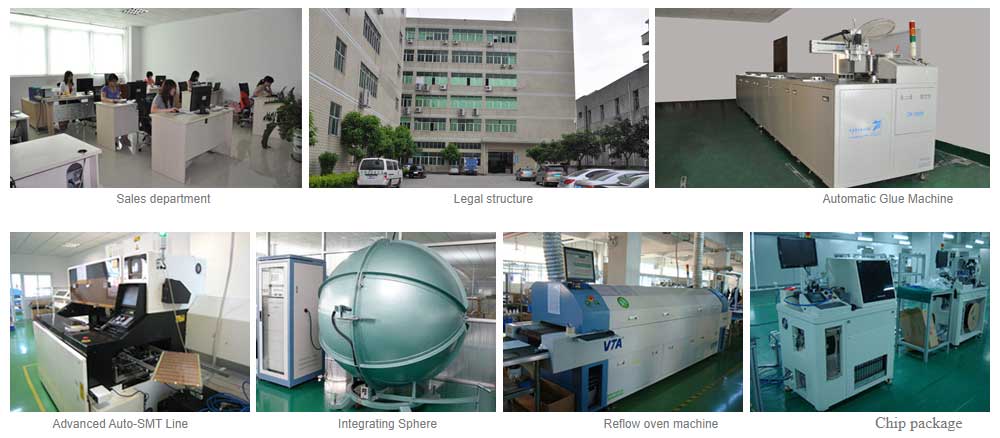

Factory photo
